WEBER sanding
WEBER MNR
Technical specification

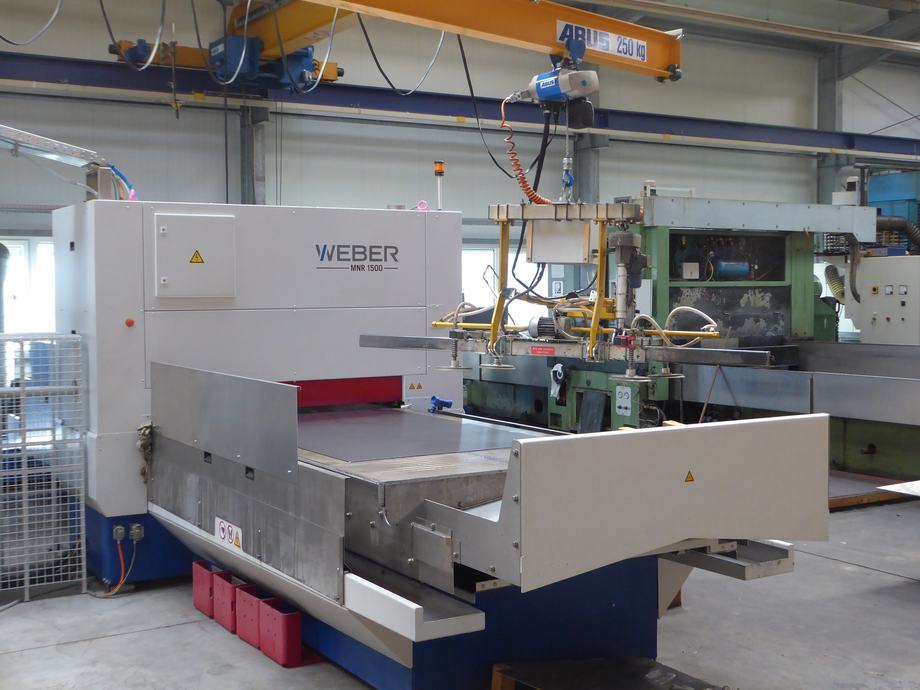

WEBER MNR
Precision calibration for high-end sheet metal
- Working widths
- 1100, 1350, 1600 and 2000 mm
- Working height
- 1000 mm (constant)
- Processing stations
- 1 to 2 per frame unit
- Workpiece thickness
- 0,5–25 mm
- Feed rate
- Stepless (3–25 m/min)
- Accessory
- Magnetic clamping table
Vacuum clamping table - Sanding belt length
- 2620 mm
- Sanding belt drive
- up to 110 kW
- Operation
- Multi Panel
„i-Touch“ Controller - Thickness tolerance
- up to 10 μ
- Grinding technology
- M-BS Bürstenwalzen
M-GD Schleifwalzen
WEBER processing systems
Rubber-coated sanding rollers are used for surface finishing and deburring. The sanding pressure is generated by lowering the roller relative to the preset workpiece thickness. As the workpiece enters the sanding zone, the rubber coating is compressed upward, and its restoring force generates the required sanding pressure.
Sanding rollers are available in various diameters and rubber hardnesses, allowing them to be precisely adapted to different workpieces and processing requirements.
