WEBER sanding
WEBER NLCA

3
Different working widhts

0,3 - 120 mm
Workpiece thickness

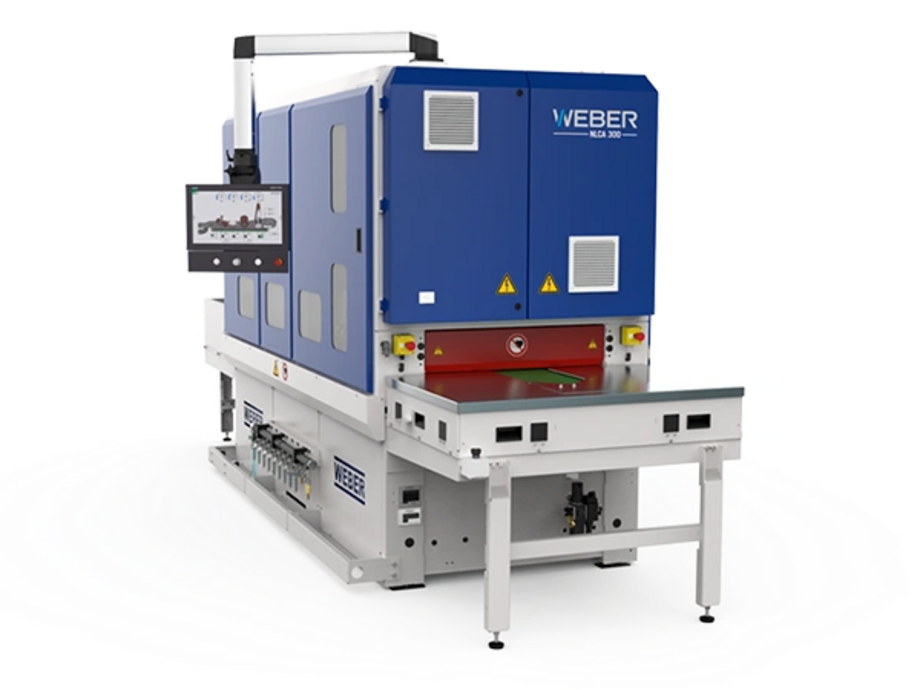

WEBER NLCA - Perfect edges, maximum efficiency

The WEBER NLCA sets new standards in the processing of fineblanked parts. Whether deburring, rounding, descaling or grinding - this wet deburring machine ensures uniform, precise edge rounding at maximum throughput speed. Thanks to its compact design and perfect integration with WEBER cleaning machines, you get a highly efficient production solution in the smallest of spaces.

Maximize quality and productivity - with the WEBER NLCA.

Technical specification

WEBER NLCA
Nass-Entgratmaschine für Feinschneidteile

Working widths: 300, 450 and 600 mm
Working height: 900 mm (constant)
Execution: 1 to 6 sanding stations
Arrangement freely selectable
Operating mode: top grinding
Workpiece thickness: 0,3–120 mm
Feedspeed: stepless (1–10 m/min)
Sanding belt length: 2620 mm
Sanding belt drive: up to 30 kW
Operation: Multi Panel

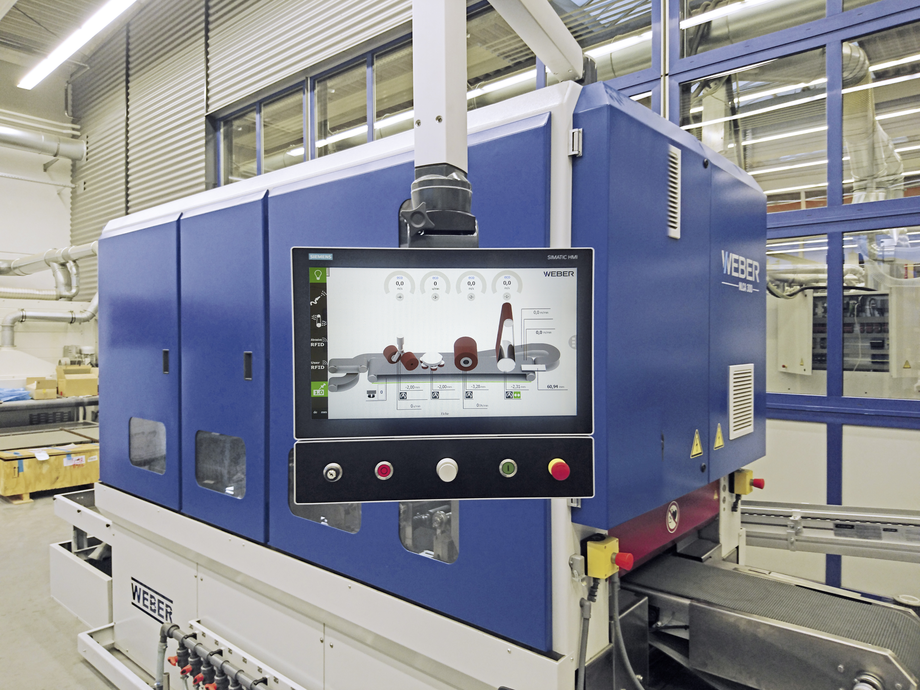

„i-Touch“ Controller
Processing system: + Contact roller unit “D”
+ Planetary head unit “P6”
+ MRB unit “R2”
+ Feed system with magnetic clamping technology and demagnetization
+ Complete solution including parts handling

Finsih

Deburring

WEBER working systems

Up to 10 sanding stations can be integrated into the NLCA.

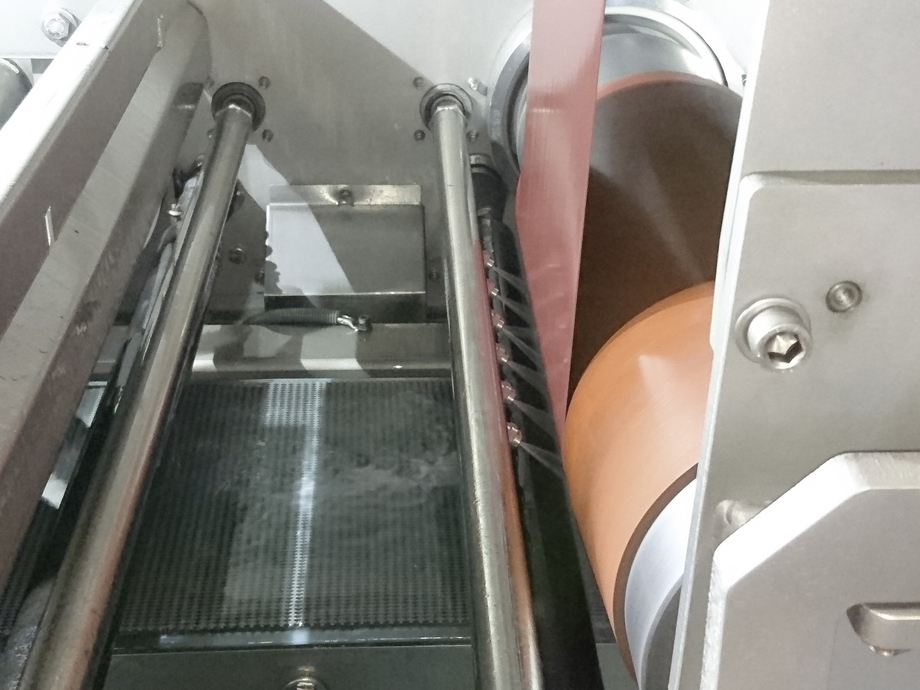

Rubber-coated contact rollers provide controlled and uniform material removal for deburring and surface finishing. The grinding pressure is generated by lowering the roller below the preset workpiece thickness, allowing the process to be precisely adapted to different workpieces.

The contact roller is particularly effective for rough grinding and removing heavy, melted laser spatter. Electric adjustment enables fast and precise positioning, including adjustments during operation.

The unit can also be equipped with Scotch-Brite belts for additional surface finishing. Contact rollers are available in different diameters and rubber hardnesses, allowing them to be configured for a wide range of applications.

Technical Specifications:
+ Rubber-coated 40-90 Shore
+ Drive depending on the series up to 110kW
+ Electric roller adjustment and positioning

Features:
+ Use of different belts possible
+ Removes thick, molten laser spatters
+ Effective for rough grinding
+ Surface grinding

The WEBER multi-rotation brush is designed for uniform edge rounding of inner and outer edges. Multiple rotating brush heads are arranged side by side, with two intermeshing brushes per head ensuring consistent processing across the entire working width.

Its compact design allows the brush unit to be easily combined with other WEBER sanding technologies. It is particularly well suited for coated materials such as foil-coated or galvanized sheets, where the protective coating must remain intact during processing.

Technical Specifications:
+ Drive 2,6kW per unit
+ Speed frequency-controlled 30-150U/min
+ Cutting speed frequency-controlled 5-20m/sec
+ Electrical height adjustment and positioning

Features:
+ Grinding-brushing station with multiple horizontal rotating units
+ Each with 2 vertical rotating brushes
+ Flap brushes are quick-changeable
+ Side extension for easy tool change

outer edges. Multiple rotating brush heads are arranged side by side, with two intermeshing brushes per head ensuring consistent processing across the entire working width.

Thanks to its compact design, the unit can be easily combined with other WEBER sanding technologies. It is particularly suitable for processing coated materials such as foil-coated or galvanized sheets, where the coating must remain intact during edge rounding.

Technical Specifications:
+ Drive 2,6kW per unit
+ Speed frequency-controlled 30-150U/min
+ Cutting speed frequency-controlled 5-20m/sec
+ Electrical height adjustment and positioning

Features:
+ Grinding-brushing station with multiple horizontal rotating units
+ Each with 2 vertical rotating brushes
+ Flap brushes are quick-changeable
+ Side extension for easy tool change

Have a look!

Your advantages at a glance

Compact design
Drives completely in the dry area
Brush units extendable from the side, thus better integration into production lines
Single-track and double-track variants with or without turning device and part return
Optimal accessibility for maintenance
Two-sided processing from top and bottom as an option
