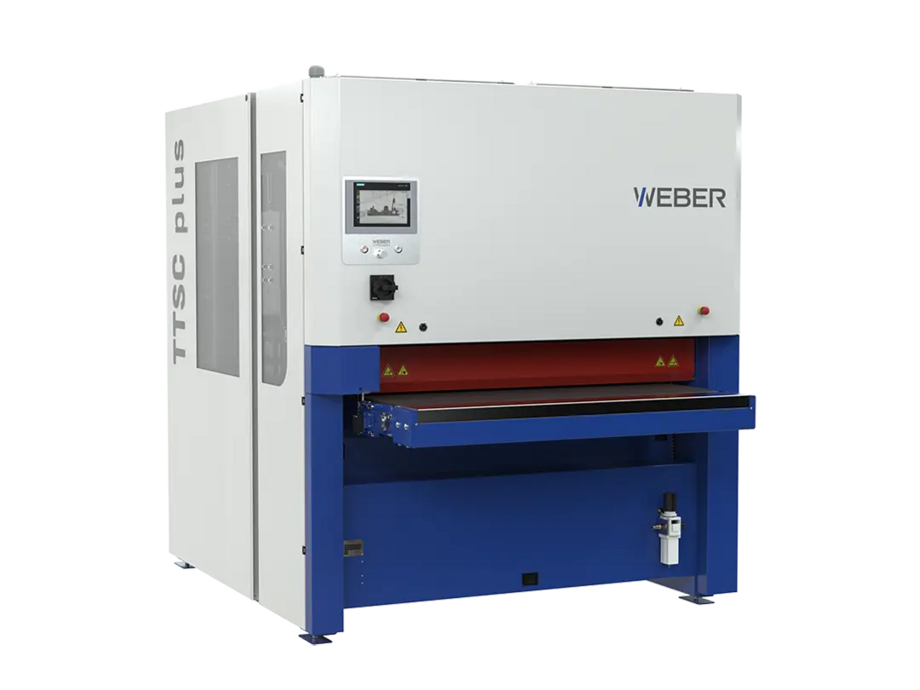

WEBER TTSC plus

up to 3
sanding stations

0,5 - 100 mm
workpiece thickness

The all-rounder for maximum precision and productivity

The top model in the compact class combines three processing technologies in one machine for efficient sheet metal finishing. From fast deburring and edge rounding up to R2 to high-quality surface sanding, it handles a wide range of demanding applications.

The innovative D_P2_R2 system combines three processing steps in a single machine, making it an efficient solution for job shops and contract manufacturers. Intelligent control and demand-based dust extraction enable flexible processing of both ferrous and non-ferrous materials.

Whether processing perforated, foil-coated, or scaled sheet metal, the machine delivers reliable edge and surface finishing with high productivity.

Technical specification

WEBER TTSC plus
The plus in equipment for more performance and flexibility

Working widths: 1350 mm
Execution: 3 sanding stations
Workpiece thickness: 0,3–100 mm
Sanding belt drive: up to 19 kW
Operation: „i-Touch“ Controller
Processing systmes: + Contact roller unit “D”
+ Planetary head unit "P2"
+ MRB unit “R2”
Features: Automatic thickness measurement
Program-controlled infeed and outfeed of the processing stations
Ausstattung: Automatische Dickenmessung
Programmgesteuertes Ein- und Zustellen der Bearbeitungsstationen

Slag removal

Entzundern

Große Verrundung

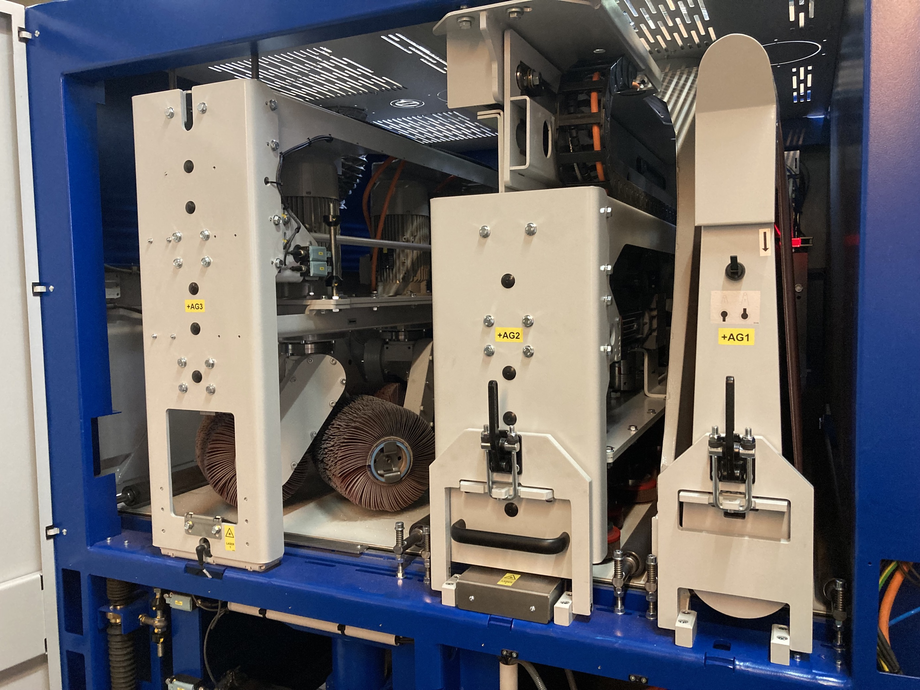

WEBER processing systems

The TTSC can be equipped with up to three independently configurable processing stations, allowing different machining operations to be combined in a single machine. The three D_P2_R2 processing systems provide a wide range of options for deburring, edge rounding, and surface finishing, making the TTSC a versatile solution for job shops.

Its modular design allows the machine to be configured to individual requirements, while doors on both sides provide easy access to the processing units and simplify maintenance.

The TTSC plus also includes the WEBER “Avantage Package” as standard, featuring a vacuum table, automatic tool length measurement, and oscillation-free sanding belt control. The oscillation control can be deactivated when required to help prevent visible oscillation marks on the finished surface.

Rubber-coated contact rollers are used for efficient deburring and surface finishing. The grinding pressure is generated by lowering the roller below the preset workpiece thickness, ensuring controlled and uniform material removal.

The contact roller is particularly effective for rough grinding and removing heavy, melted laser spatter. Its precise adjustment allows the grinding pressure to be adapted to different workpieces and processing requirements. Electric adjustment enables quick and accurate positioning, including adjustments during operation.

The unit can also be equipped with Scotch-Brite belts for additional surface finishing. Contact rollers are available in different diameters and rubber hardnesses, allowing them to be configured to suit a wide range of applications.

Technical Specifications:
+ Rubber-coated 40-90 Shore
+ Drive depending on the series up to 110kW
+ Electric roller adjustment and positioning

Features:
+ Use of different belts possible
+ Removes thick, molten laser spatters
+ Effective for rough grinding
+ Surface grinding

The patented WEBER P2 planetary head provides an efficient solution for uniform edge rounding of inner and outer contours. Its single-row design features a large overlap between individual tools, eliminating the need for additional oscillating movement and ensuring consistent processing without gaps.

The sealed planetary heads offer high durability and low-maintenance operation. The brushes continuously work at the optimal angle to the workpiece, delivering efficient and uniform edge rounding across the entire working width.

Technical Specifications:
+ Drive up to 5,2kW
+ Speed frequency-controlled 850 - 1700U/min
+ Electrical height adjustment and positioning

Features:
+ Number of units adjusted to the working width, each with 2 tools
+ Working from below starting at approx. 450mm part length possible
+ Profile grinding disc with quick-change system
+ Side extension for easy tool change

The WEBER multi-rotation brush is designed for uniform edge rounding of inner and outer edges. Multiple rotating brush heads are arranged side by side, with two intermeshing brushes per head ensuring consistent processing across the entire working width.

Its compact design allows the unit to be easily combined with other WEBER sanding technologies. The multi-rotation brush is particularly suitable for coated materials such as foil-coated or galvanized sheets, where reliable edge rounding is required without damaging or removing the protective coating.

Technical Specifications:
+ Drive 2,6kW per unit
+ Speed frequency-controlled 30-150U/min
+ Cutting speed frequency-controlled 5-20m/sec
+ Electrical height adjustment and positioning

Features:
+ Grinding-brushing station with multiple horizontal rotating units
+ Each with 2 vertical rotating brushes
+ Flap brushes are quick-changeable
+ Side extension for easy tool change

TTSC plus
Compact all-rounder for various applications

Performance: more drive power for higher throughput or larger radii
Equipment: “Avantage package” as standard (vacuum table, automatic tool length measurement, oscillation-free sanding belt control)

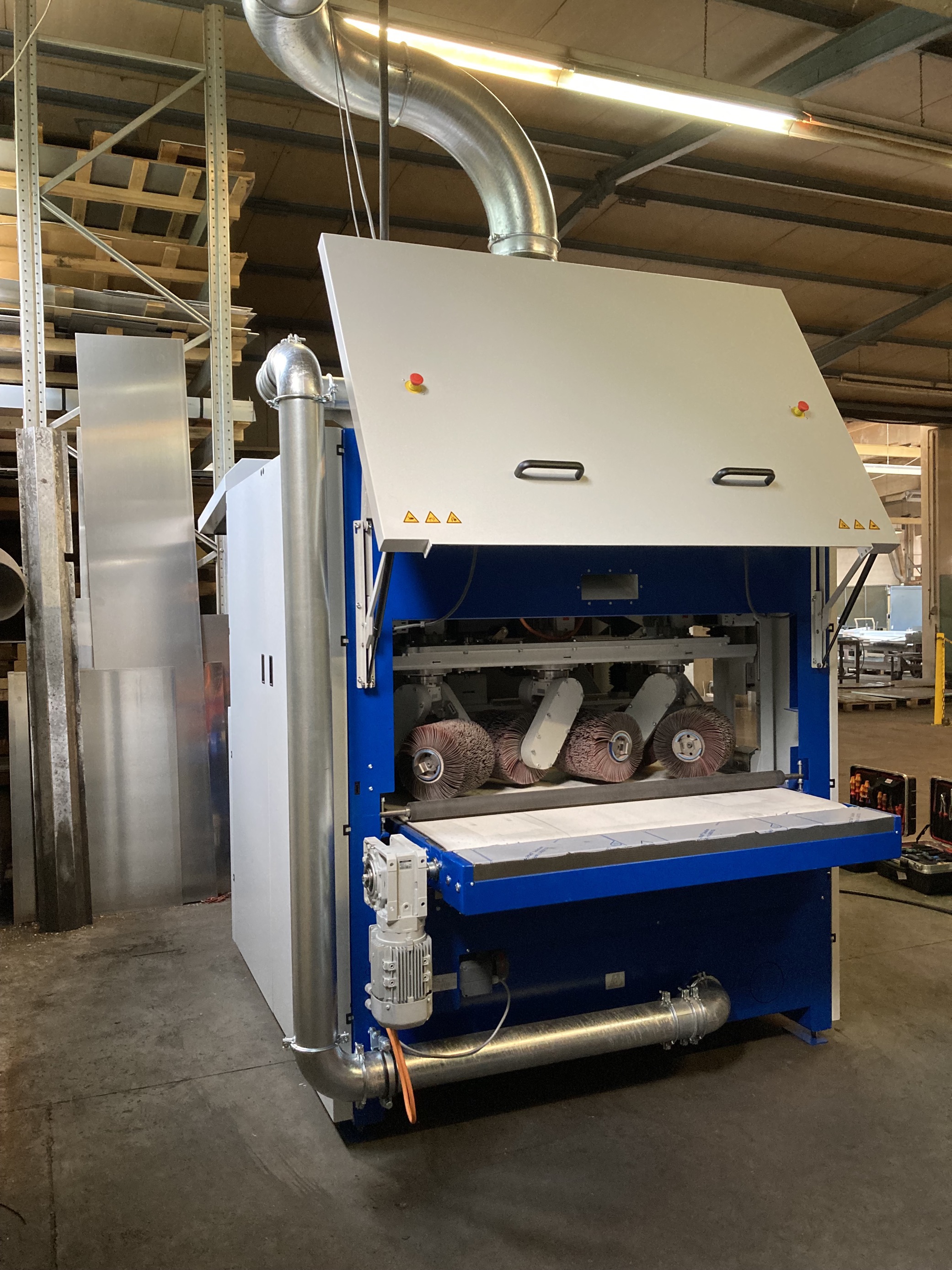

Accessibility: Side pull-out for P2 unit, tailgate for rotary brushes
Ease of operation: 9” touch terminal
Application: Deburring and perfect radii at high feed rates, rounding up to R2 possible, surface sanding, multi-rotary brushes perfect for thin sheet metal, galvanized sheet metal, laminated sheet metal
