WEBER sanding
WEBER TTK

up to 2
sanding sations

2
working widhts

0,2 - 3 mm
workpiece thickness

Deburring machine for core plates

Efficient generator manufacturing requires precisely processed core laminations with consistently clean edges. Deburring coated laminations is particularly challenging, as the edges must be processed without damaging the protective surface coating.

The WEBER solution uses a specially developed dressing unit to prepare the sanding belt for this application. This enables reliable edge deburring while preserving the coating on the lamination surface, ensuring high-quality components and efficient downstream processing.

Technische Spezifikation

WEBER TTK
Deburring machine for core plates

Working widhts: 1350 and 1600 mm
Working height: 900 mm (constant)
Execution: 1 to 2 sanding stations
Arrangement freely selectable
workpiece thickness: 0,2–3 mm
Feed rate: Stepless (3,5–35 m/min)
Sanding belt lenght: 1900 mm
Sanding belt drive: up to 22 kW
Operation: Multi Panel TP900 Comfort
„i-Touch“ Controller
Bearbeitungssysteme: + Kontaktwalzenaggregat „D“ mit integrierter Abrichttechnologie

Finsih

WEBER machining systems

Rubber-coated contact rollers provide controlled and uniform material removal for deburring and surface finishing. The grinding pressure is generated by lowering the roller below the preset workpiece thickness, allowing the process to be precisely adapted to different workpieces.

The contact roller is particularly effective for rough grinding and removing heavy, melted laser spatter. Electric adjustment enables fast and precise positioning, including adjustments during operation.

The unit can also be equipped with Scotch-Brite belts for additional surface finishing. Contact rollers are available in different diameters and rubber hardnesses, allowing them to be configured for a wide range of applications.

Technical Specifications:
+ Rubber-coated 40-90 Shore
+ Drive depending on the series up to 110kW
+ Electric roller adjustment and positioning

Features:
+ Use of different belts possible
+ Removes thick, molten laser spatters
+ Effective for rough grinding
+ Surface grinding

top innovation

Your advantages at a glance

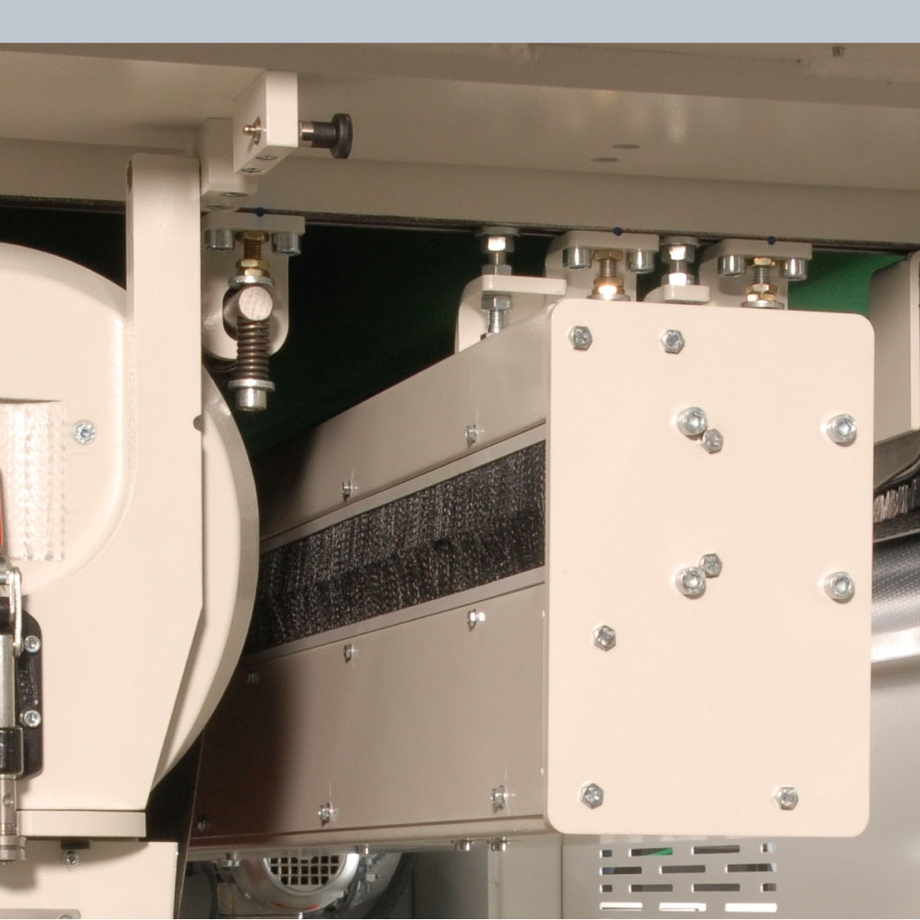

The key feature of the WEBER TTK is its specially developed dressing unit for deburring generator core laminations. This technology delivers precise deburring and grinding results that meet the demanding requirements of generator manufacturers without requiring additional processing costs for core lamination manufacturers.

The dressing unit automatically prepares the sanding belt for processing. Belt changes are quick and easy: the operator simply inserts the new belt, while the automatic system handles the remaining setup. This allows the sanding belt to be changed by a single operator in just a few simple steps.

Thanks to the efficient WEBER dressing technology, sanding belts can remain in use for several weeks, helping to reduce consumable costs and minimize downtime.
