WEBER sanding

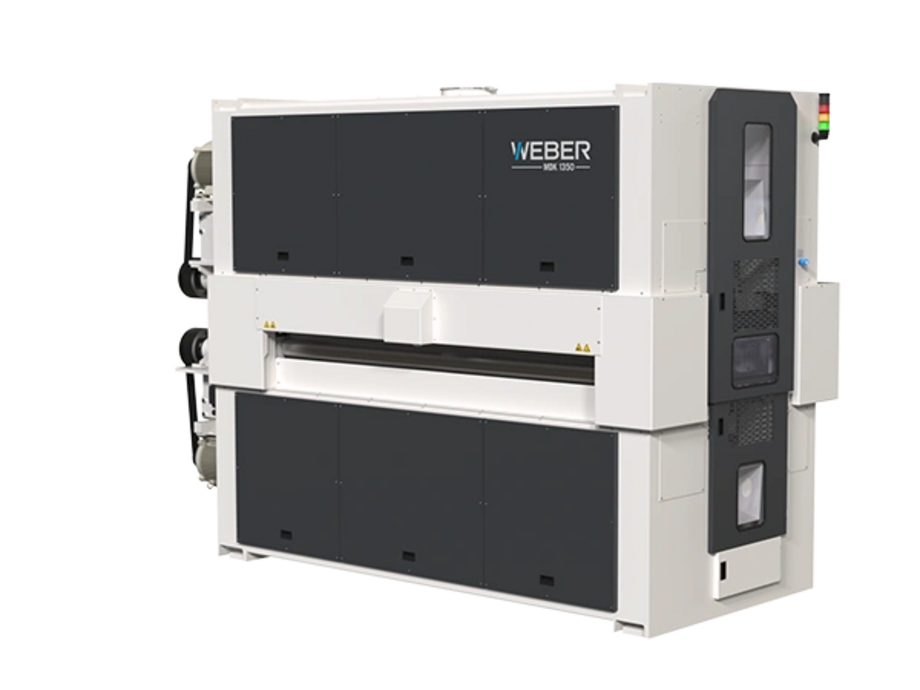

WEBER MDK

up to 3
sanding stations

up to 2250 mm
working width

Processing of fiber and panel materials with working widths of up to 2250 mm

The WEBER MDK is designed for double-sided processing of fiber and panel materials with working widths of up to 2,250 mm. Based on the proven SDK series, it offers additional power reserves with external sanding drives delivering up to 160 kW per drive.

With a wide range of working widths and configuration options, the MDK can be integrated into different production lines. Its modular column design allows up to eight processing stations, providing maximum flexibility for demanding industrial sanding applications.

Technical Specification

WEBER MDK
Special machine for the panel industry

Arbeitsbreiten: 1350, 1600, 1900 und 2250 mm
Kalibrierwalzenantrieb: bis 110kW
Schleifbandlänge: 2620 mm
Bedienung: i-Touch Controller, Multi Panel
Schleifstationen: 1 bis 3 Schleifstationen, Anordnung frei wählbar
Antrieb: seperates Antriebsgestell
Vorschubgeschwindigkeit: stufenlos
Ausstattung: frei wählbare Anordnung durch modularen Aufbau
Zentrale Steuerung aller Maschinenparameter
Außenliegende Antriebe
als Doppelkopf erhältlich
Schleifaggregate: + Kontaktwalzenaggregat (D)
+ Kissenaggregat (P)
+ Kombiaggregat (K)

solid wood

WEBER processing stations

The WEBER contact roller unit is designed for precise calibration, pre-sanding, and fine sanding of solid wood and a wide range of wood-based materials.

Its robust construction makes it suitable for continuous and multi-shift operation. The spiral-grooved contact roller provides consistent sanding results, high durability, and reliable performance while requiring minimal maintenance.

With its versatile application range, the WEBER contact roller unit is an efficient solution for demanding sanding processes in woodworking machines and production lines.

General technical data:
+ Grooved steel or rubber contact roller
+ Drive up to 160 kW depending on the series
+ Diameter up to 450 mm depending on the series
+ Electric roller adjustment and positioning
+ Programme-controlled grit compensation

General features:
+ Suitable for use with various belts
+ Effective for pre-sanding
+ Calibration possible within a 0.01 mm range

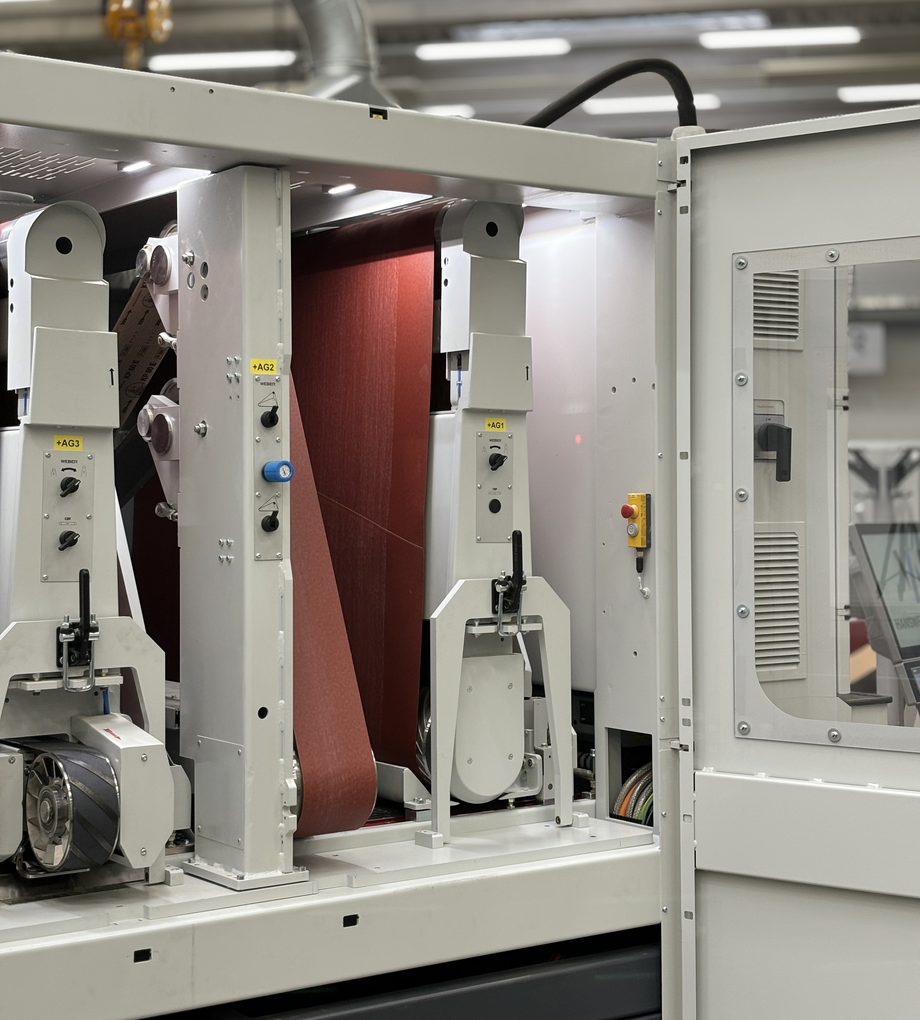

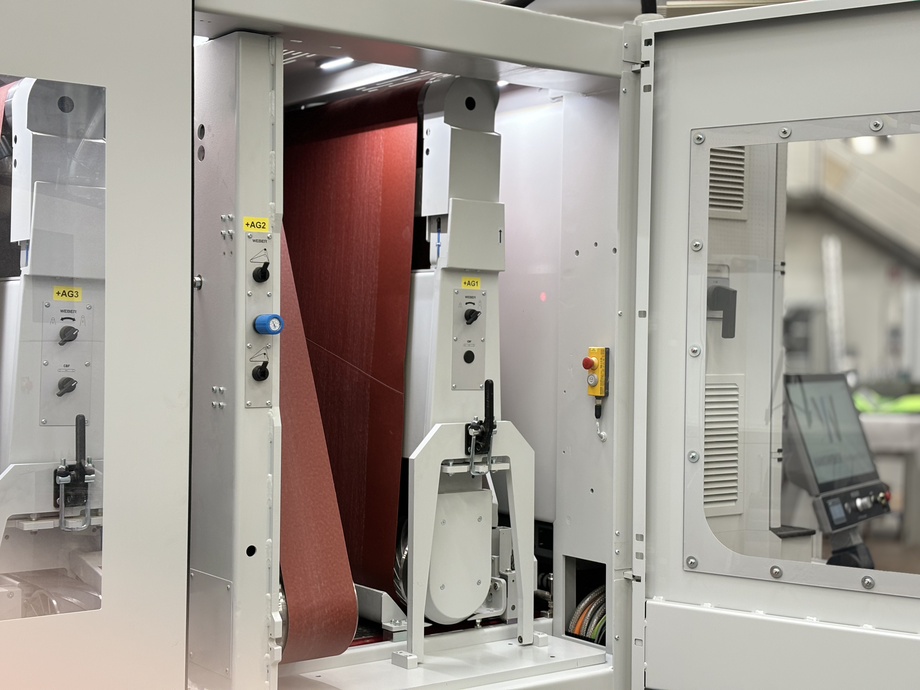

WEBER contact roller for wood sanding machine

The WEBER cushion unit is designed for gentle and precise finishing of sensitive wood surfaces. Its highly adaptable sanding station delivers consistent results even on demanding workpieces such as veneer, profiled surfaces, and coated materials.

General technical data:
+ grooved steel or rubber contact roller
+ drive up to 110 kW depending on the series
+ diameter up to 210 mm depending on the series
+ electric roller adjustment and positioning

WEBER Cushion unit for wood sanding machine

The WEBER combination unit combines the material removal performance of a contact roller with the flexibility of a sanding beam in a single sanding station. This enables precise calibration followed by fine finishing, making it ideal for applications requiring both high dimensional accuracy and excellent surface quality.

General technical data:
+ Grooved steel or rubber contact roller, ø130 mm
+ Drive power up to 19 kW depending on the series
+ Adjustment accuracy: 0.02 mm
+ Direction of rotation: synchronous/counter-rotating

General features:
+ Calibration and finishing in sequence
+ For sensitive surfaces
+ Variable grinding patterns
+ ISA pressure bar system

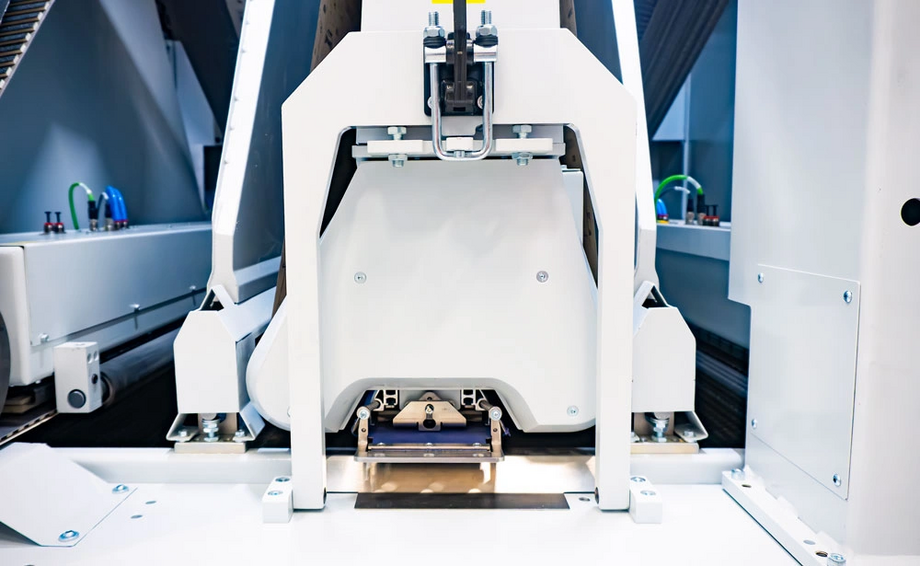

WEBER Kombiaggregat fuer Holzschleifmaschine

Beyond the standard

Your advantages at a glance

WEBER has developed three dedicated machine series for processing panel-shaped materials. Their design is specifically adapted to the demanding requirements of industrial panel sanding and differs significantly from conventional sanding machines.

For veneer and plywood panels, the sanding pad stations can be equipped with electronically controlled link pressure beams for precise and consistent sanding pressure. The sanding drives are separated from the machine frame and integrated into a dedicated unit. This minimizes vibration transfer to the machine and helps prevent sanding irregularities.
