WEBER sanding
WEBER KSN compact
up to 2
sanding stations
1
compact working width
Perfect sanding results for the highest demands
The WEBER KSN compact combines proven WEBER sanding technology with a space-saving design and attractive value. Developed for trade and smaller operations, it delivers reliable, high-quality sanding results in a compact package. An optional cross-sanding unit is available for particularly demanding surface requirements.
Technical Specification
WEBER KSN compact
The special model from WEBER for wood sanding, veneer sanding and lacquer sanding
- Working widhts
- 1350 mm
- Piece thickness
- 3-200mm
- Calibration roller drive
- up to 24 kW
- Operation

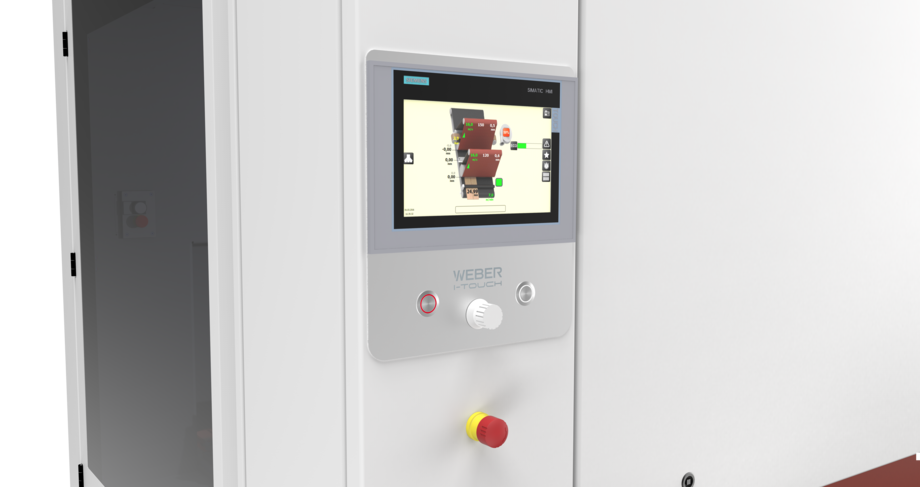

- "i-Touch" Controller, Multi Panel
- Sanding belt length
- 2150 mm widthband
4900 mm crossband - Excecution
- 1 to 2 sanding stations, freely selectable arrangement
- Additional equipment
- Table extension with rollers at the inlet and outlet
Universal sanding flap - Sanding techniques
- + Contact roller unit (D)
+ Cross belt unit (C)
+ CBF combination unit (M)
WEBER processing stations
The WEBER contact roller unit is designed for precise calibration, pre-sanding, and fine sanding of solid wood and a wide range of wood-based materials.
Its robust construction makes it suitable for continuous and multi-shift operation. The spiral-grooved contact roller provides consistent sanding results, high durability, and reliable performance while requiring minimal maintenance.
With its versatile application range, the WEBER contact roller unit is an efficient solution for demanding sanding processes in woodworking machines and production lines.
General technical data:
+ Grooved steel or rubber contact roller
+ Drive up to 160 kW depending on the series
+ Diameter up to 450 mm depending on the series
+ Electric roller adjustment and positioning
+ Programme-controlled grit compensation
General features:
+ Suitable for use with various belts
+ Effective for pre-sanding
+ Calibration possible within a 0.01 mm range
The WEBER CBF combination unit combines precise material removal with high-quality surface finishing in a single sanding unit. A grooved contact roller provides controlled material removal and accurate calibration, while the CBF (Cross Belt Finishing) system creates an even, streak-free surface without visible oscillation marks.
This combination delivers both high dimensional accuracy and excellent surface quality, making it ideal for demanding sanding applications.
General technical data:
+ Grooved steel or rubber contact roller
+ ø130mm
+ Drive up to 30kW
+ Cutting speed of approx. 2–25 m/sec
General features:
+ Electric motor-driven roller adjustment and positioning
+ Precise adaptation to the workpiece
+ Internal ISA link pressure beam
+ Oscillation-mark-free cross-finishing
The WEBER cross-belt unit is designed for high-quality wood surface finishing. By sanding across the direction of the wood grain, it creates a uniform, consistent surface while effectively reducing visible sanding marks.
The resulting surface provides an excellent foundation for subsequent finishing processes such as staining, lacquering, or coating.
General technical data:
+ Drive: 15 kW
+ Pressure lamella belt with felt and graphite
+ ISD segmented pressure beam
General features:
+ High-quality sanding finish
+ Surface sanding for uniform lacquering
+ Stepless speed adjustment
Klein aber fein
Your advantages at a glance
The contact roller is designed for precise calibration and flat surfaces. Its spiral-grooved design enables high material removal while ensuring accurate processing and a long service life.
The sanding pad is used for fine surface finishing on solid wood and veneer. Cross sanding processes the workpiece across the grain before sanding in the longitudinal direction. This crossing movement provides advantages over repeated longitudinal sanding and helps achieve a more uniform surface.
The cross belt operates at 90° to the grain, effectively cutting coarse wood fibers and creating an even, refined surface.
