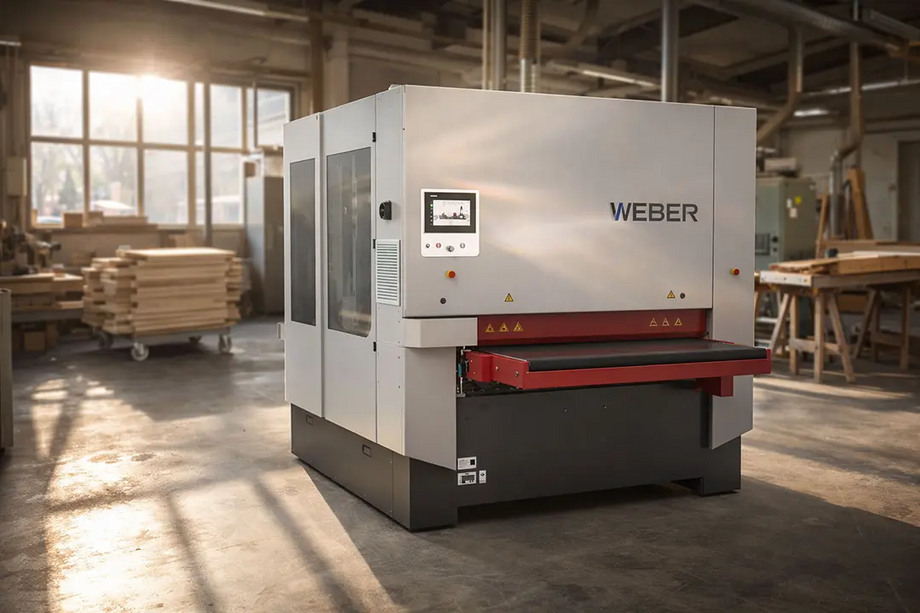

WEBER KSE
for sanding wood, veneer and varnish
16
Machine combinations
3–200 mm
Workpiece thickness
A precise and efficient grinding solution for small businesses
The WEBER KSE combines proven sanding technology with a compact, cost-effective design. As a high-performance automatic sanding machine, it delivers consistent surface quality and reliable processing for trade businesses and small-scale industrial applications.
The KSE brings the capabilities of larger industrial sanding machines into a space-saving package. Users benefit from high process reliability, efficient operation, and excellent sanding results across a wide range of applications.
For particularly demanding surface requirements, the KSE is available with an optional cross-grinding unit. This provides an even sanding finish on solid wood, veneer, and lacquered workpieces.
The KSE is available in two pre-configured machine variants: DM and CM.

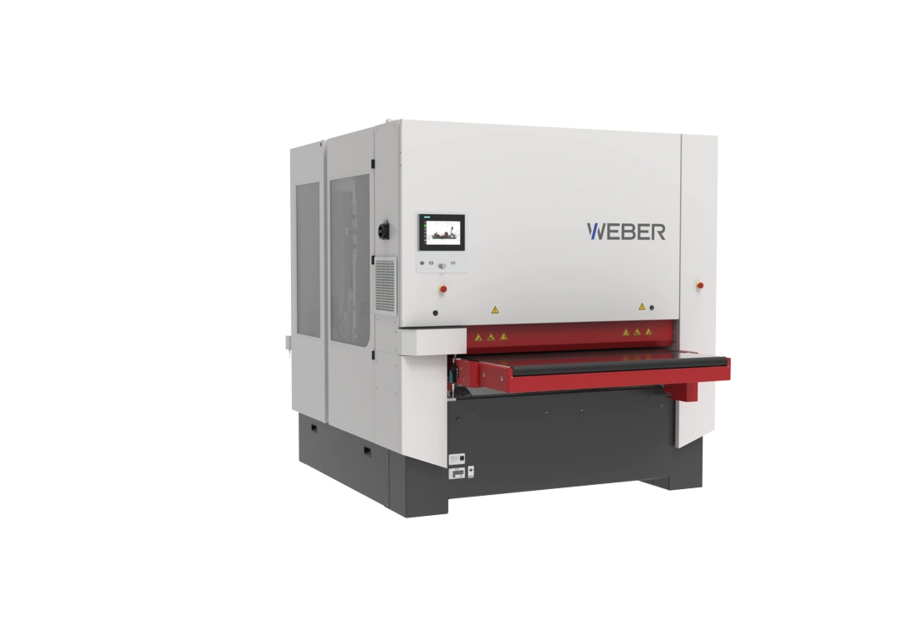

WEBER KSE
Automatic sanding machine for wood, veneer, varnish and decorative sanding
- Working widhts
- 1350 mm
- Sanding belt lenght
- 2620 mm wide belt
5100 mm cross belt - Execution
- 16 combinations of units
- Calibration roller drive
- up to 24 kW
- Additional features
- Modular pressure elements
33 mm pitch - Vacuum system
- integrated into the machine frame
- Operation
- „i-Touch“ Controller
- Sanding units
- Contact roller unit (D)
Cross-grinding unit (C)
Cushion unit (P)
Combined unit (K)
CBF unit (F)
CBF combined unit (M)
Brush system (B)
Plate head system (P2)
WEBER processing stations can be installed in any order
The WEBER contact roller unit is designed for precise calibration, pre-sanding, and fine sanding of solid wood and a wide range of wood-based materials.
Its robust construction makes it suitable for continuous and multi-shift operation. The spiral-grooved contact roller provides consistent sanding results, high durability, and reliable performance while requiring minimal maintenance.
With its versatile application range, the WEBER contact roller unit is an efficient solution for demanding sanding processes in woodworking machines and production lines.
General technical data:
+ Grooved steel or rubber contact roller
+ Drive up to 160 kW depending on the series
+ Diameter up to 450 mm depending on the series
+ Electric roller adjustment and positioning
+ Programme-controlled grit compensation
General features:
+ Suitable for use with various belts
+ Effective for pre-sanding
+ Calibration possible within a 0.01 mm range
The WEBER combination unit combines the material removal performance of a contact roller with the flexibility of a sanding beam in a single sanding station. This enables precise calibration followed by fine finishing, making it ideal for applications requiring both high dimensional accuracy and excellent surface quality.
General technical data:
+ Grooved steel or rubber contact roller, ø130 mm
+ Drive power up to 19 kW depending on the series
+ Adjustment accuracy: 0.02 mm
+ Direction of rotation: synchronous/counter-rotating
General features:
+ Calibration and finishing in sequence
+ For sensitive surfaces
+ Variable grinding patterns
+ ISA pressure bar system
The WEBER cross-belt unit is designed for high-quality wood surface finishing. By sanding across the direction of the wood grain, it creates a uniform, consistent surface while effectively reducing visible sanding marks.
The resulting surface provides an excellent foundation for subsequent finishing processes such as staining, lacquering, or coating.
General technical data:
+ Drive: 15 kW
+ Pressure lamella belt with felt and graphite
+ ISD segmented pressure beam
General features:
+ High-quality sanding finish
+ Surface sanding for uniform lacquering
+ Stepless speed adjustment
The patented WEBER P2 planetary head is designed for consistent surface processing and precise edge rounding. Its multi-directional tool movement enables uniform results across a wide range of workpiece geometries.
The P2 is particularly well suited for demanding woodworking applications where consistent edge quality, precise surface finishing, and reliable processing are essential.
The WEBER “B” brushing unit is a versatile sanding module for texturing, fine finishing, dust removal, and stripping of wood and wood-based materials.
With a wide selection of brush types and flexible configuration options, the unit can be adapted to a variety of applications. From decorative surface structuring to functional finishing and cleaning, the WEBER “B” brushing unit provides reliable and consistent results.
General technical data:
+ Drive up to 24 kW
+ Cutting speed 2–10 m/s
+ Display accuracy 1/10 mm
General features:
+ Adjustable oscillation
+ Motorised roller lift
